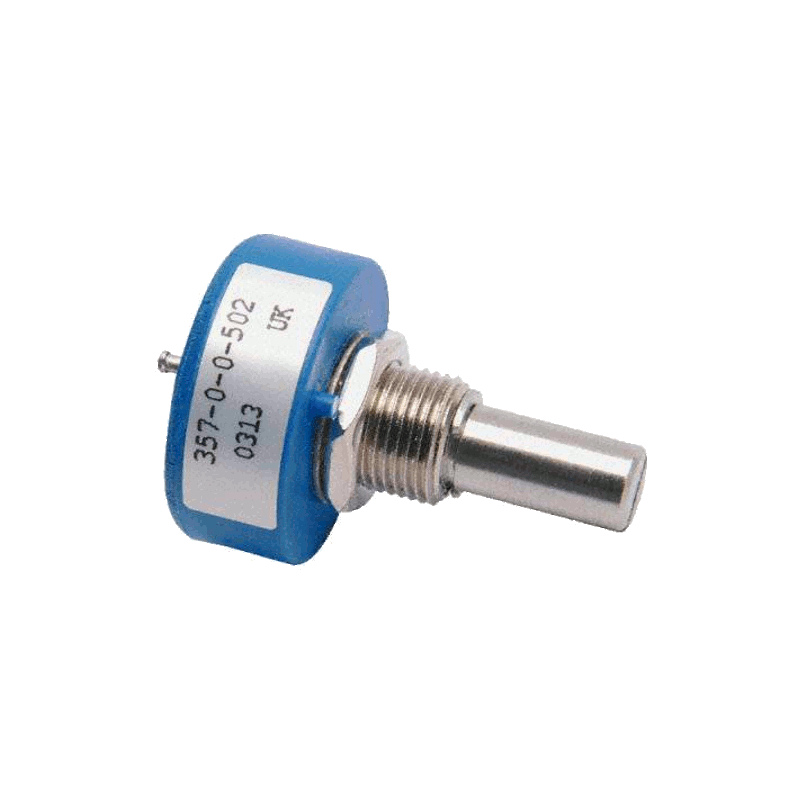

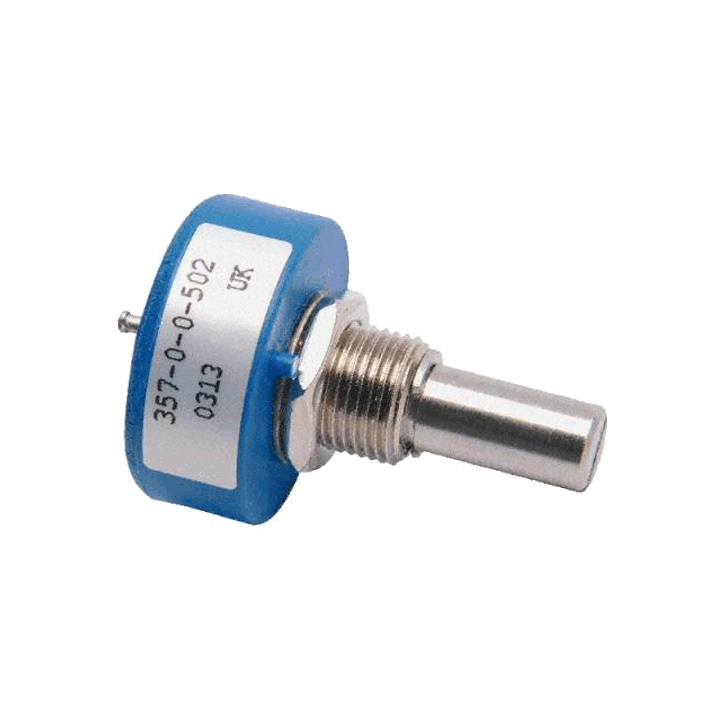

Serie 357 VISHAY SPECTROL
Nuovo
Potenziometri di precisione serie 357 1 giro senza fermo
Politiche per la sicurezza
Collegamenti sicuri e protetti da certificato Comodo EV SSL
Politiche per le spedizioni
Spedizioni sicure con corrieri espressi Tracciabili
Politiche per i resi
Resi garantiti previa autorizazione RMA
- Descrizione:
- No. of Turns: 1
- Resistance Tolerance: ? 10%
- Series: 357
- Power Rating: 1W
- Resistor Element Type: Variable Rotary Cermet
- Case Style: PCB Mount
- Dielectric Strength, VAC: 750V
- Electrical Angular Rotation Tolerance +: 5?
- Electrical Angular Rotation Tolerance -: 5?
- End Resistance: 2ohm
- External Depth: 7.6mm
- External Length / Height: 12.7mm
- External Width: 12.7mm
- Full Power Rating Temperature: 70?C
- Insulation Resistance: 1000Mohm
- Max Operating Temperature: 125?C
- Mechanical Angular Rotation Tolerance +: 5?
- Mechanical Angular Rotation Tolerance -: 5?
- Min Temperature Operating: -55?C
- Operating Temperature Range: -55?C to +125?C
- Proof Voltage: 750V AC
- Resistance: 25kohm
- Rotation Electrical Angle: 360?
- Rotation Mechanical Angle: 360?
- Shaft Diameter: 6.35mm
- Shaft Length - Metric: 22.225mm
- Temperature Coeff. +: 100ppm/?C
- Temperature Coeff. -: 100ppm/?C
- Temperature Coefficient: ? 100ppm/?C
- Thread Size: 3/8" 32 UNEF
- Tolerance, +: 10%
357B-102
Nuovo
4 Articoli
